R800ZZ Motion Capture ver 0.1 for PICO 4 Ultra / PICO 4

• "Calibration" Button -> Calibration Setting
• "Adjust Floor >" Button -> Adjust Floor
• "Start" Button -> To Dance -> "Stop" Button

/Android/data/com.r800zz.r800MotionCapture/ Data files are output here.

• Developer : R800ZZ
• Supported devices : PICO 4 Ultra / PICO 4 with PICO Motion Tracker
  PICO Motion Tracker required.
• Full Tracking(Excluding facial expressions and fingers.)
• Stand-alone : A PC is not required.(When you do motion capture)
• Price : Free
• This application will record your movements.
  The data created with this software can be used for 3DCG avatar viewing, 3DCG game creation, 3DCG video production, and more.
• Output File Format : BVH (.bvh Name of Bone=VRM) , VMD(.vmd)
  It is possible to export BVH and VMD simultaneously.
  Output folder : /Android/data/com.r800zz.r800MotionCapture/
  You cannot access the output folder with the standard file manager.

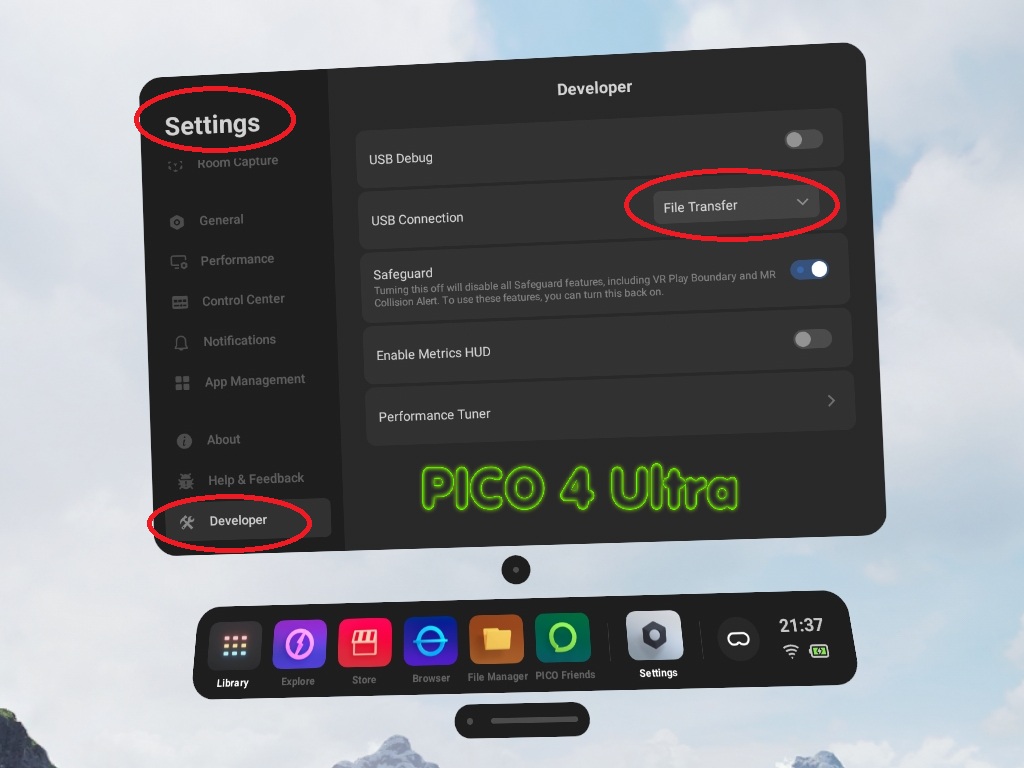

  Please access through Cx File Explorer or a computer (USB connection).
  Cx File Explorer(APKPure)
• BVH : Unity , Blender , VRM Live Viewer etc...
• VMD : DanceXR , VRM Live Viewer etc...
• Passthrough in VR : Switchable between ON and OFF , PICO 4 Ultra=3D
• Model : based 文目 冷美(Ayame Remi)/ 忍ver. by ゔぁんそこ

• Install FBX Exporter.

• Install BVH Tools(Unity AssetStore).
• Attach Assets/Plugins/BVH Tools/Scripts/BVHAnimationLoader.cs to the Game Object.
•
  "Blender" = Off. "Standard Bone Names" = If the bone names match, either is fine.
  "Flexble Bone Names" = If the bone names match, either is fine.
  "Anmation/Anim" = Leave it , "Anmation/Clip" = Leave it
•
•

•
  I can't explain it because it's difficult.
  In Blender, retargeting (remapping) is necessary and difficult.
  I used Auto-Rig Pro.
  Even then, it's difficult.
  The bone names in the BVH files generated by R800ZZ Motion Capture are VRM.
  For VRM models, retargeting (remapping) is a bit easier because the bone names match.

• Leg IK: Auto -> Leg IK: Force Off

BVH is a text file.
sed can perform batch conversion of text files.
sed is a command-line program.
sed for Windows

• VRM -> Unity HumanBodyBones


  sed -f vrm2std.sed < input_vrm.bvh > output_std.bvh

  Download : vrm2std.sed


  s/\<J_Bip_C_Hips\>/Hips/
  s/\<J_Bip_C_Spine\>/Spine/
  s/\<J_Bip_C_Chest\>/Chest/
  s/\<J_Bip_C_UpperChest\>/UpperChest/
  s/\<J_Bip_C_Neck\>/Neck/
  s/\<J_Bip_C_Head\>/Head/
  s/\<J_Adj_L_FaceEye\>/LeftEye/
  s/\<J_Adj_R_FaceEye\>/RightEye/
  s/\<J_Bip_L_Shoulder\>/LeftShoulder/
  s/\<J_Bip_R_Shoulder\>/RightShoulder/
  s/\<J_Bip_L_UpperArm\>/LeftUpperArm/
  s/\<J_Bip_R_UpperArm\>/RightUpperArm/
  s/\<J_Bip_L_LowerArm\>/LeftLowerArm/
  s/\<J_Bip_R_LowerArm\>/RightLowerArm/
  s/\<J_Bip_L_Hand\>/LeftHand/
  s/\<J_Bip_R_Hand\>/RightHand/
  s/\<J_Bip_L_UpperLeg\>/LeftUpperLeg/
  s/\<J_Bip_R_UpperLeg\>/RightUpperLeg/
  s/\<J_Bip_L_LowerLeg\>/LeftLowerLeg/
  s/\<J_Bip_R_LowerLeg\>/RightLowerLeg/
  s/\<J_Bip_L_Foot\>/LeftFoot/
  s/\<J_Bip_R_Foot\>/RightFoot/
  s/\<J_Bip_L_ToeBase\>/LeftToes/
  s/\<J_Bip_R_ToeBase\>/RightToes/
  s/\<J_Bip_L_Index1\>/LeftIndexProximal/
  s/\<J_Bip_L_Index2\>/LeftIndexIntermediate/
  s/\<J_Bip_L_Index3\>/LeftIndexDistal/
  s/\<J_Bip_R_Index1\>/RightIndexProximal/
  s/\<J_Bip_R_Index2\>/RightIndexIntermediate/
  s/\<J_Bip_R_Index3\>/RightIndexDistal/
  s/\<J_Bip_L_Little1\>/LeftLittleProximal/
  s/\<J_Bip_L_Little2\>/LeftLittleIntermediate/
  s/\<J_Bip_L_Little3\>/LeftLittleDistal/
  s/\<J_Bip_R_Little1\>/RightLittleProximal/
  s/\<J_Bip_R_Little2\>/RightLittleIntermediate/
  s/\<J_Bip_R_Little3\>/RightLittleDistal/
  s/\<J_Bip_L_Middle1\>/LeftMiddleProximal/
  s/\<J_Bip_L_Middle2\>/LeftMiddleIntermediate/
  s/\<J_Bip_L_Middle3\>/LeftMiddleDistal/
  s/\<J_Bip_R_Middle1\>/RightMiddleProximal/
  s/\<J_Bip_R_Middle2\>/RightMiddleIntermediate/
  s/\<J_Bip_R_Middle3\>/RightMiddleDistal/
  s/\<J_Bip_L_Ring1\>/LeftRingProximal/
  s/\<J_Bip_L_Ring2\>/LeftRingIntermediate/
  s/\<J_Bip_L_Ring3\>/LeftRingDistal/
  s/\<J_Bip_R_Ring1\>/RightRingProximal/
  s/\<J_Bip_R_Ring2\>/RightRingIntermediate/
  s/\<J_Bip_R_Ring3\>/RightRingDistal/
  s/\<J_Bip_L_Thumb1\>/LeftThumbProximal/
  s/\<J_Bip_L_Thumb2\>/LeftThumbIntermediate/
  s/\<J_Bip_L_Thumb3\>/LeftThumbDistal/
  s/\<J_Bip_R_Thumb1\>/RightThumbProximal/
  s/\<J_Bip_R_Thumb2\>/RightThumbIntermediate/
  s/\<J_Bip_R_Thumb3\>/RightThumbDistal/



• Unity HumanBodyBones -> VRM


  sed -f std2vrm.sed < input_std.bvh > output_vrm.bvh

  Download : std2vrm.sed


  s/\<Hips\>/J_Bip_C_Hips/
  s/\<Spine\>/J_Bip_C_Spine/
  s/\<Chest\>/J_Bip_C_Chest/
  s/\<UpperChest\>/J_Bip_C_UpperChest/
  s/\<Neck\>/J_Bip_C_Neck/
  s/\<Head\>/J_Bip_C_Head/
  s/\<LeftEye\>/J_Adj_L_FaceEye/
  s/\<RightEye\>/J_Adj_R_FaceEye/
  s/\<LeftShoulder\>/J_Bip_L_Shoulder/
  s/\<RightShoulder\>/J_Bip_R_Shoulder/
  s/\<LeftUpperArm\>/J_Bip_L_UpperArm/
  s/\<RightUpperArm\>/J_Bip_R_UpperArm/
  s/\<LeftLowerArm\>/J_Bip_L_LowerArm/
  s/\<RightLowerArm\>/J_Bip_R_LowerArm/
  s/\<LeftHand\>/J_Bip_L_Hand/
  s/\<RightHand\>/J_Bip_R_Hand/
  s/\<LeftUpperLeg\>/J_Bip_L_UpperLeg/
  s/\<RightUpperLeg\>/J_Bip_R_UpperLeg/
  s/\<LeftLowerLeg\>/J_Bip_L_LowerLeg/
  s/\<RightLowerLeg\>/J_Bip_R_LowerLeg/
  s/\<LeftFoot\>/J_Bip_L_Foot/
  s/\<RightFoot\>/J_Bip_R_Foot/
  s/\<LeftToes\>/J_Bip_L_ToeBase/
  s/\<RightToes\>/J_Bip_R_ToeBase/
  s/\<LeftIndexProximal\>/J_Bip_L_Index1/
  s/\<LeftIndexIntermediate\>/J_Bip_L_Index2/
  s/\<LeftIndexDistal\>/J_Bip_L_Index3/
  s/\<RightIndexProximal\>/J_Bip_R_Index1/
  s/\<RightIndexIntermediate\>/J_Bip_R_Index2/
  s/\<RightIndexDistal\>/J_Bip_R_Index3/
  s/\<LeftLittleProximal\>/J_Bip_L_Little1/
  s/\<LeftLittleIntermediate\>/J_Bip_L_Little2/
  s/\<LeftLittleDistal\>/J_Bip_L_Little3/
  s/\<RightLittleProximal\>/J_Bip_R_Little1/
  s/\<RightLittleIntermediate\>/J_Bip_R_Little2/
  s/\<RightLittleDistal\>/J_Bip_R_Little3/
  s/\<LeftMiddleProximal\>/J_Bip_L_Middle1/
  s/\<LeftMiddleIntermediate/s/LeftMiddleProximal\>/J_Bip_L_Middle1/
  s/\<LeftMiddleIntermediate\>/J_Bip_L_Middle2/
  s/\<LeftMiddleDistal\>/J_Bip_L_Middle3/J_Bip_L_Middle2/
  s/\<LeftMiddleDistal\>/J_Bip_L_Middle3/
  s/\<RightMiddleProximal\>/J_Bip_R_Middle1/
  s/\<RightMiddleIntermediate\>/J_Bip_R_Middle2/
  s/\<RightMiddleDistal\>/J_Bip_R_Middle3/
  s/\<LeftRingProximal\>/J_Bip_L_Ring1/
  s/\<LeftRingIntermediate\>/J_Bip_L_Ring2/
  s/\<LeftRingDistal\>/J_Bip_L_Ring3/
  s/\<RightRingProximal\>/J_Bip_R_Ring1/
  s/\<RightRingIntermediate\>/J_Bip_R_Ring2/
  s/\<RightRingDistal\>/J_Bip_R_Ring3/
  s/\<LeftThumbProximal\>/J_Bip_L_Thumb1/
  s/\<LeftThumbIntermediate\>/J_Bip_L_Thumb2/
  s/\<LeftThumbDistal\>/J_Bip_L_Thumb3/
  s/\<RightThumbProximal\>/J_Bip_R_Thumb1/
  s/\<RightThumbIntermediate\>/J_Bip_R_Thumb2/
  s/\<RightThumbDistal\>/J_Bip_R_Thumb3/
